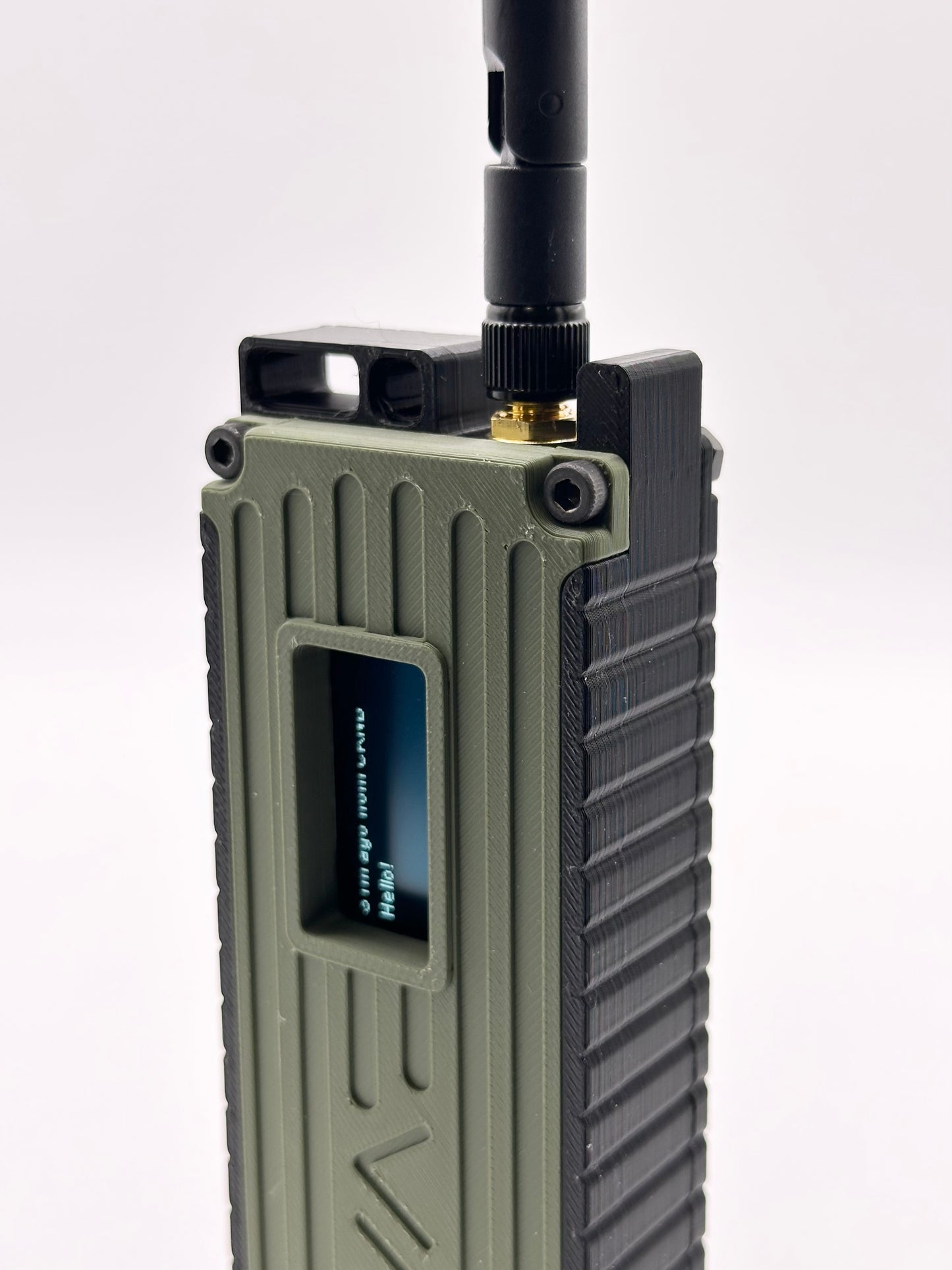

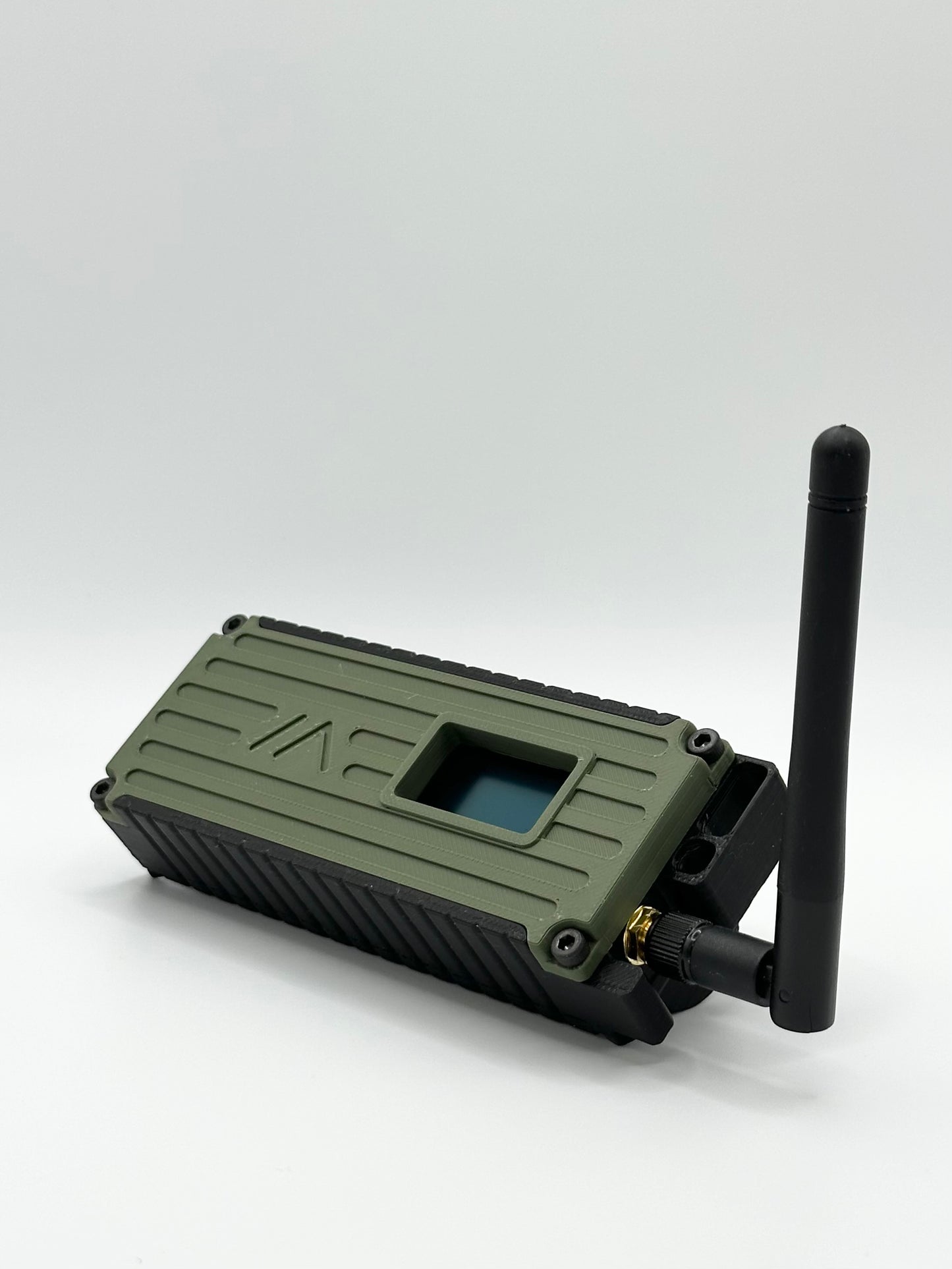

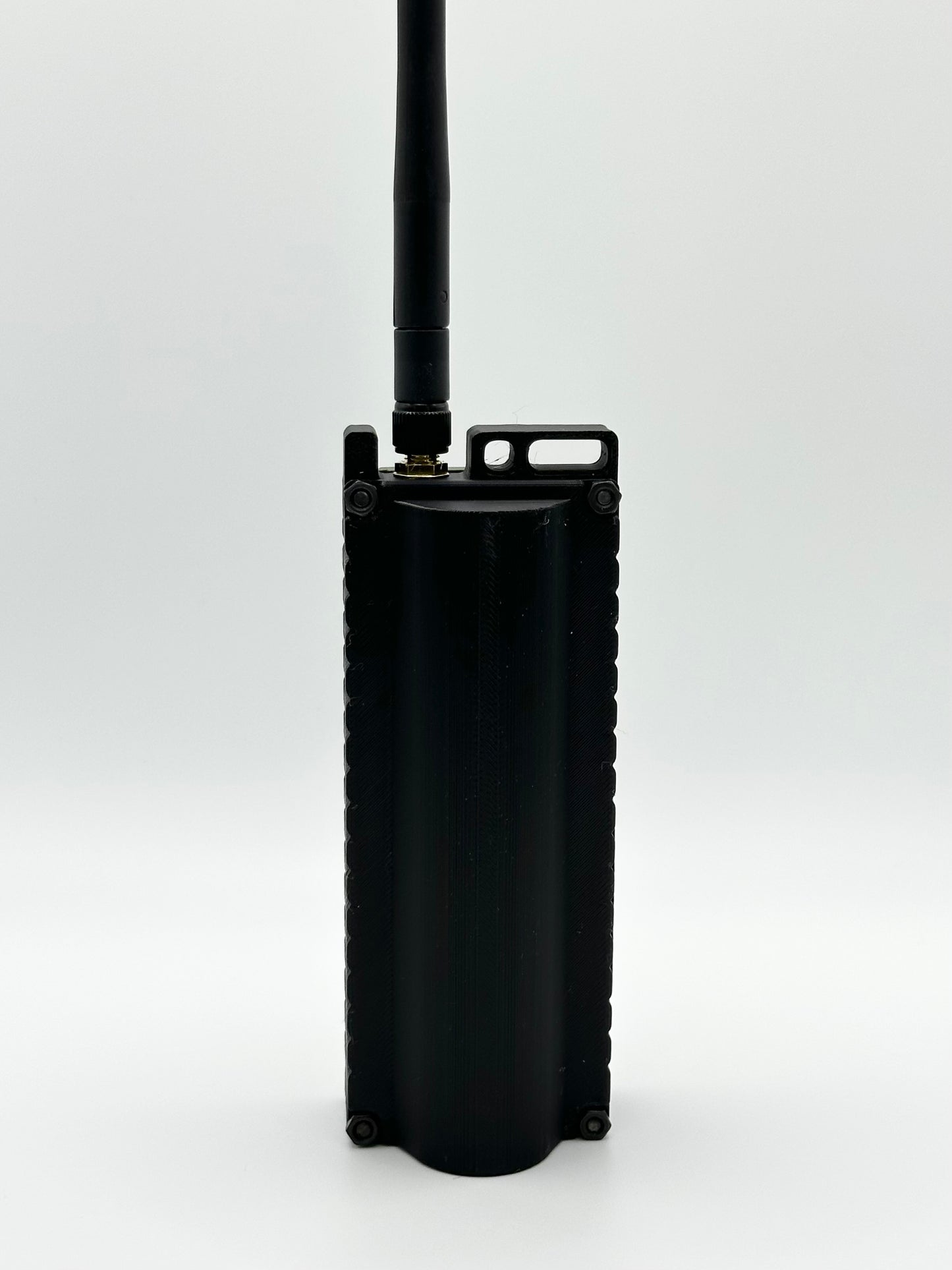

Lilygo T-Beam SUPREME Case / Enclosure for Meshtastic
Lilygo T-Beam SUPREME Case / Enclosure for Meshtastic
For all United States orders please visit QuantumShadow3D!
This product is licensed for sale with permission from QuantumShadow3D.
*CASE ONLY - DOES NOT INCLUDE T-BEAM SUPREME, SMA OR ANTENNA - DOES NOT FIT T-BEAM 6M OR M8N BOARDS*
Custom 3D printed case/enclosure for Meshtastic, made to order; multiple colors and sizes are available (case front/back covers in matching color of choice, middle frame will be black)
Features
- Durable material
- External SMA mounting
What's Included?
- 3D printed case
- 3D printed buttons
- Required screws and nuts
What's NOT Included?
- T-Beam Supreme Board
- IPEX TO SMA (Optional Extra)
- Antenna (Optional Extra)
Battery recommendations
- 18650
Case dimensions (without antenna connected)
- 124mm (L) x 48mm (W) x 39mm (H)
Share
Collapsible content
3D Printing Process
Our products are made on demand using a manufacturing process called FDM 3D Printing (Fused deposition modeling).
This allows us to print your orders on demand, with minimal lead time in processing.
3D Printing Materials
What are the 3DChicken range of 3D printed goods made from?
Polylactic acid, also known as PLA, is a thermoplastic monomer derived from renewable, organic sources such as corn starch or sugar cane. Using biomass resources makes PLA production different from most plastics, which are produced using fossil fuels through the distillation and polymerization of petroleum.ic sources such as corn starch
Although this material is strong, prolongued exposure to heat/sun may cause some deformation.
Processing Time
Every single product is made on demand, in the UK. This is why we estimate it takes 1-7 days to process your order. (Most orders are processed within 1-2 days)
Quality Control
We only sell and ship products that meet our high standards. If we aren't 100% happy with the quality, why would we expect you to be!
Because of this, you can find some discounted items in the store that weren't quite good enough to be sent to customers!
That being said, due to the nature of 3D printing, all products are subject to unique textures, visible layer lines & minor defects.
Returns
3D Printed items are made on demand, specific to customer requirements. We do not accept returns.
Thoughts?
A) Commercials:
- A little pricy but a nice product.
- Good online store and easy payment.
- Good initial confirmation but then went quiet for 10 days and I had to chase. Updates on progress would have been nice but the products arrived quickly and very well packaged after my second email.
2) Product Design:
- Good quality printing and materials.
- Fitted together nicely and all the parts for the case (screws, buttons and button cover) were included.
- There are no instructions. It took several attempts to work out what when where. A few tips:
A) The GPS antenna is stuck on - peel it off and you stuff it into a cut out in the ‘middle frame’.
B) undo the screw on the Supreme board (antenna end) to ‘release’ the antenna (turn off the device so as not to knacker the radio) and insert into the middle frame antenna hole (putting the washers and bolts on properly).
C) tighten the two front screws and remover totally the two USB C / SD card clot end board screws.
D) put the buttons in to the holes (try not to let the drop out or you will lose them (as I did). Please supply some spares…
E) insert the board into the middle chassis frame and screw in with the long thins supplied screws.
F) put top the bottom (battery) covers and do up the 6 bolts.
Suggestions:
- Supply or fix the buttons - they drop out easily.
- Make it possible to insert a SD card (if using the case for non-Mestastic applications).
- Add a clear perspective screen to protect and seal the box.
- I used different 5dB gain antennas which work well.
- Give me a discount on the next order :)
Well thought out and priduced for the purpose.
Lovely case, but it was a bit of a puzzle to figure out how to fit everything inside, which screws to remove from the lilygo extreme, but I got there in the end.
Overall very beautiful and well made case but I am forced to carry it for the moment in a bag because the buttons are too thin and do not hold. I am the host of a YouTube channel and I will soon be producing a tutorial dedicated to the Meshstatic network. We will be able to see your box but I don't know if I will talk about it for the reason mentioned above. In addition, important shipping costs: 16 euros. I have paid a customs tax of 16 euros. A nasty surprise! Thank you Brexit! In this case, I cannot recommend your product. Sincerely, Gaël - YouTube channel "Rando QRP".

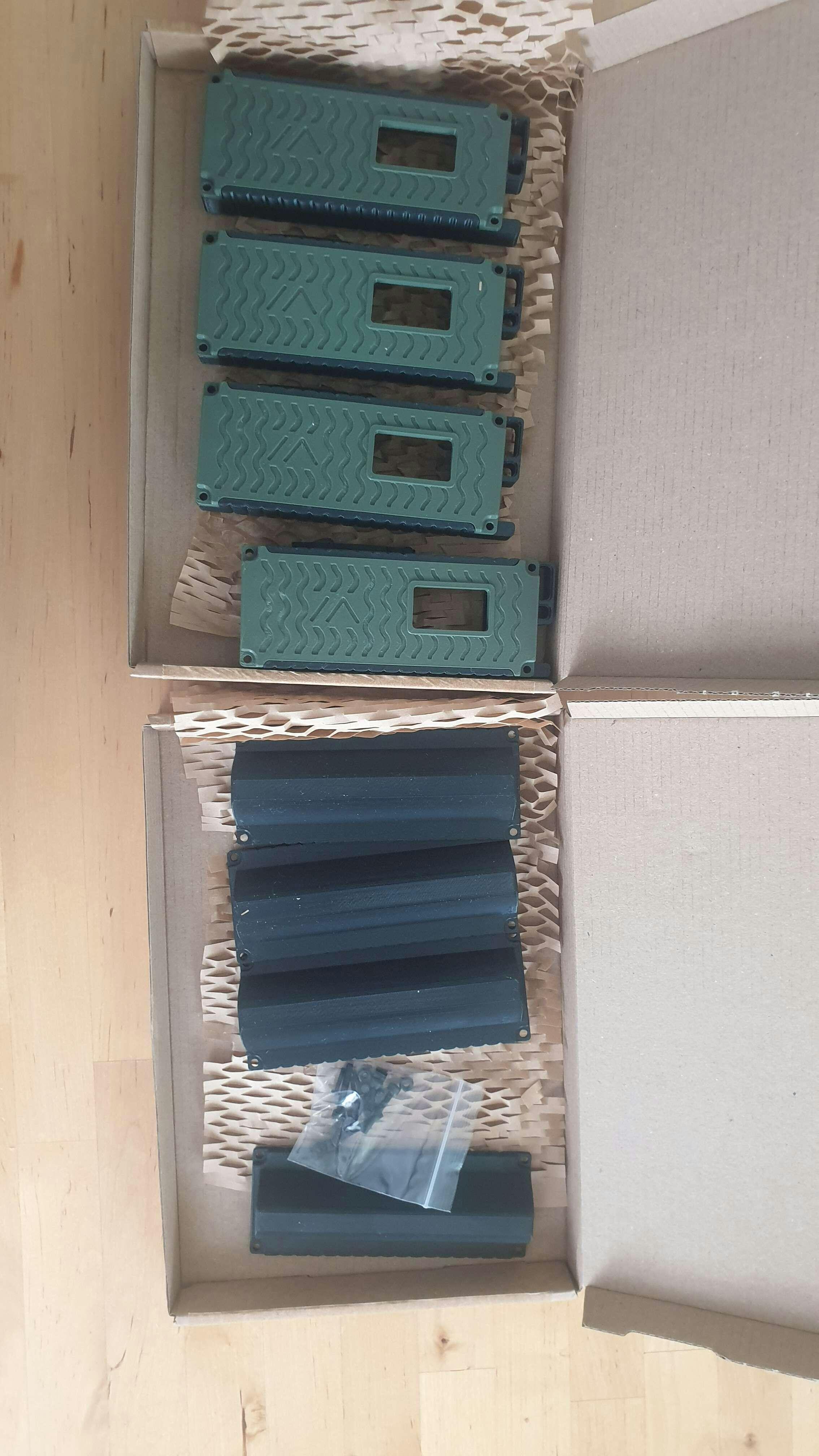

Ordered 4 cases, for the T-Beam Supreme.
Great customer service, I asked for the details such as button sizes and windows and button covers. All came nicely packaged and protected with all the hardware.
Items fitted very well. (opted to use the slightly looser button in the end). this is a personal preference thing.
Very Happy and would recommend. I will be buying from this store again.
