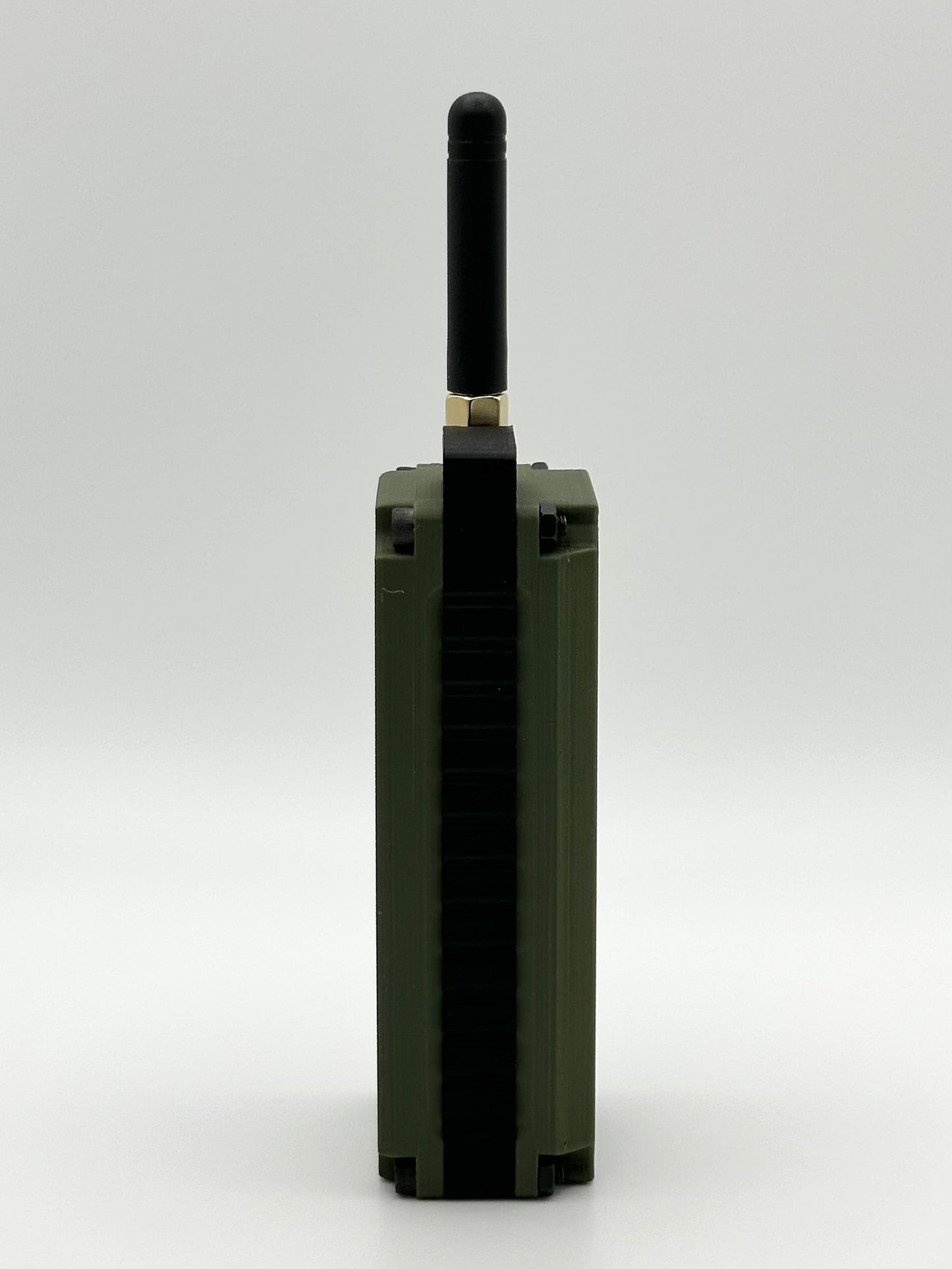

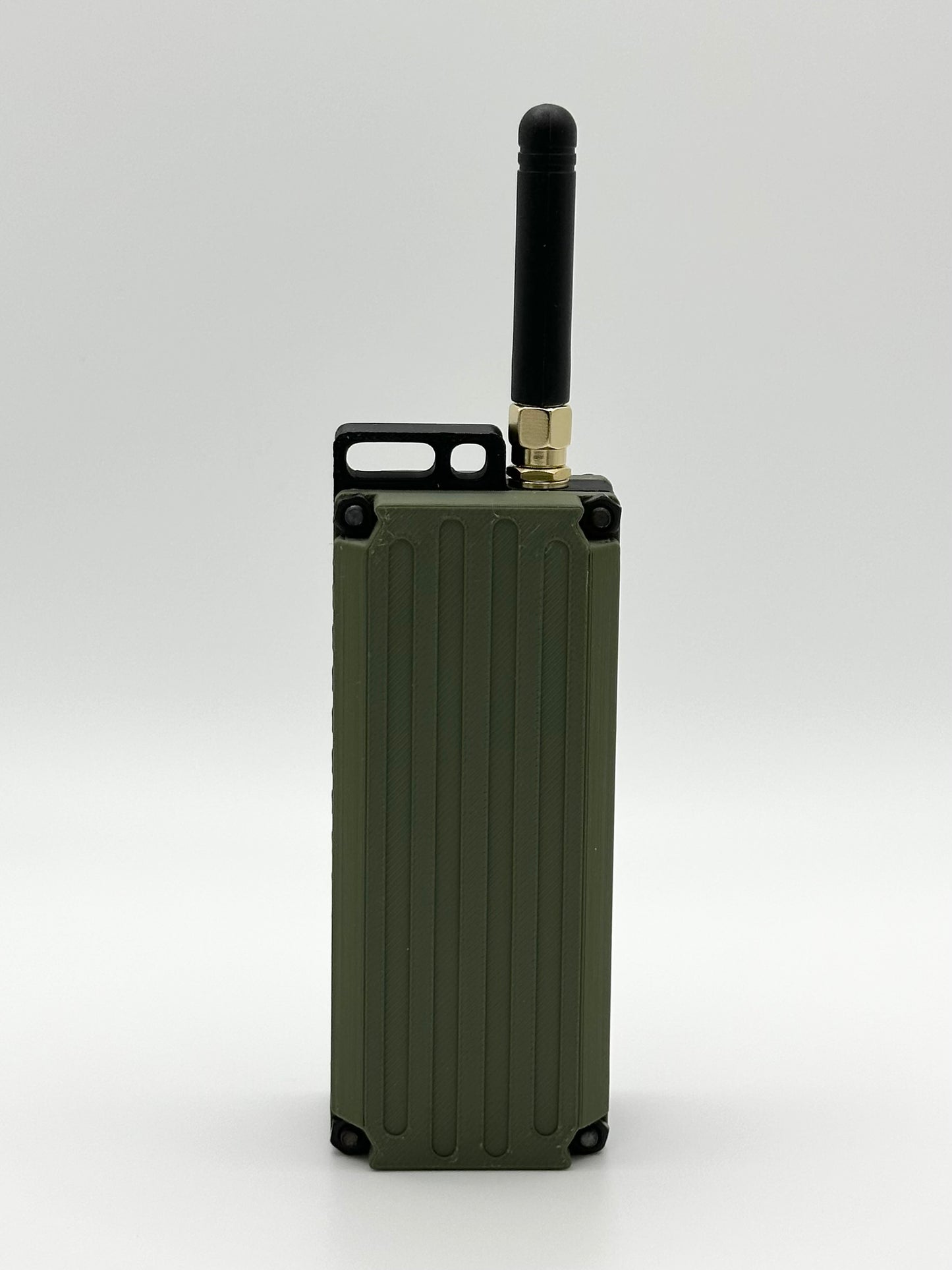

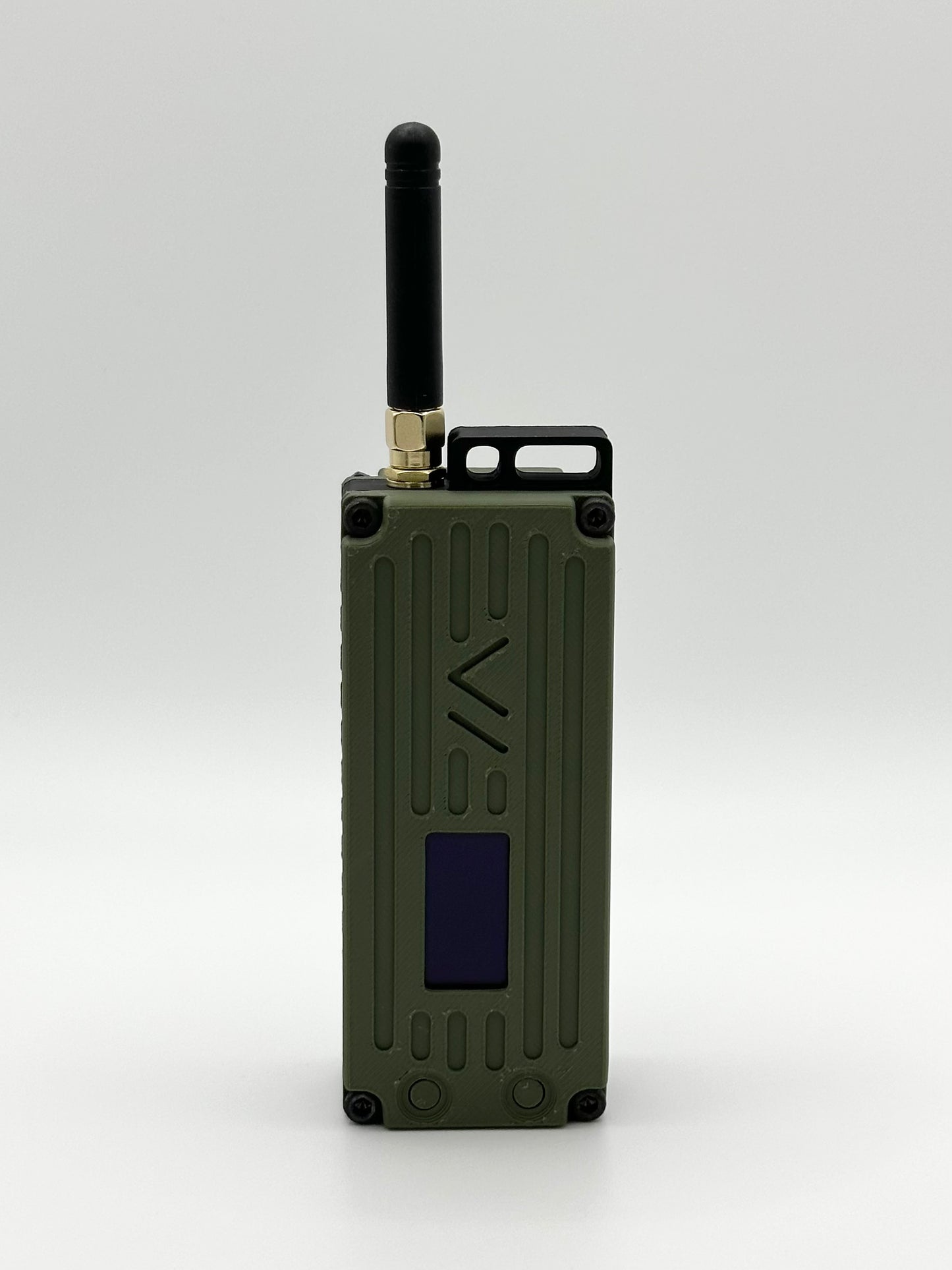

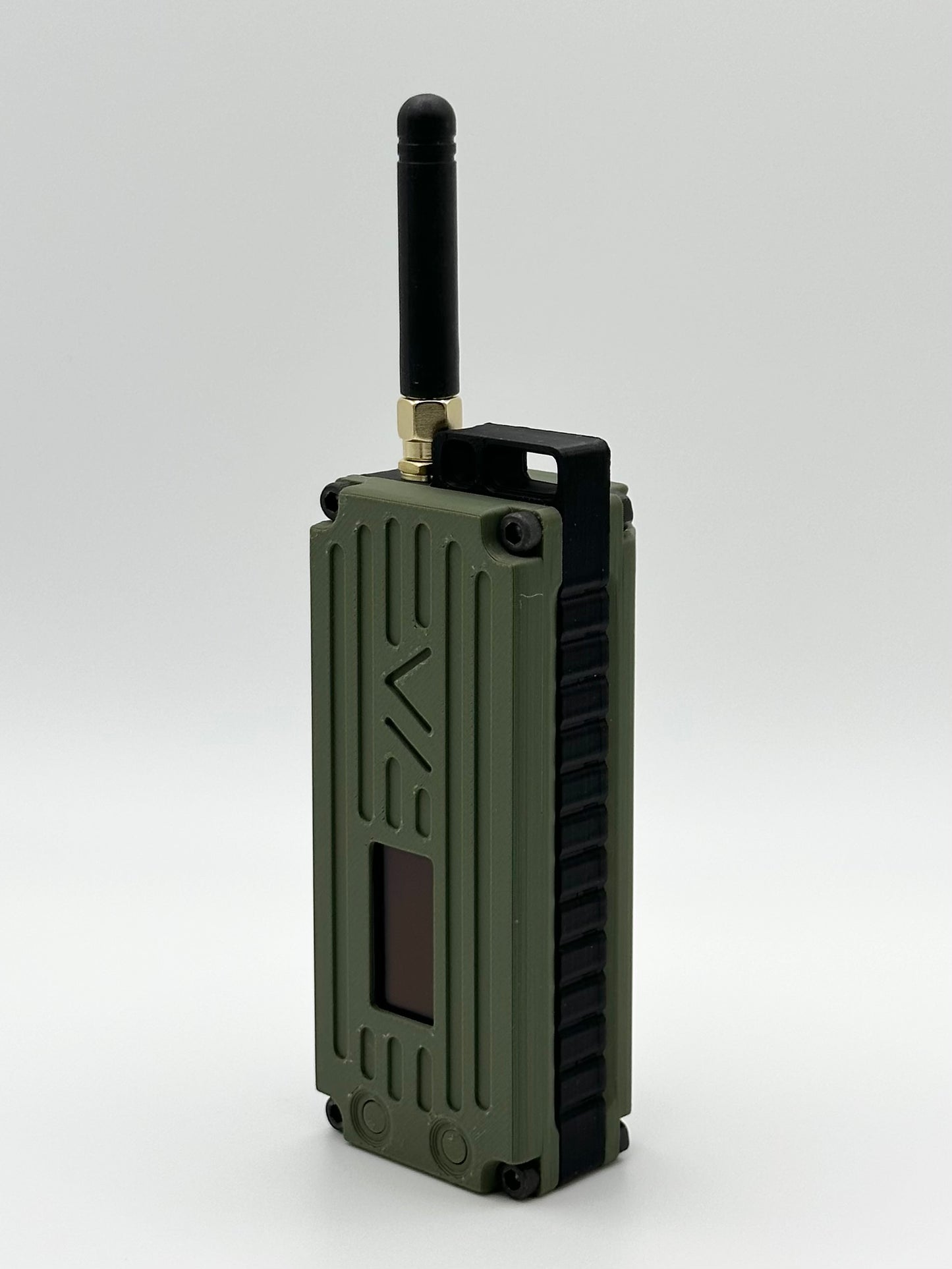

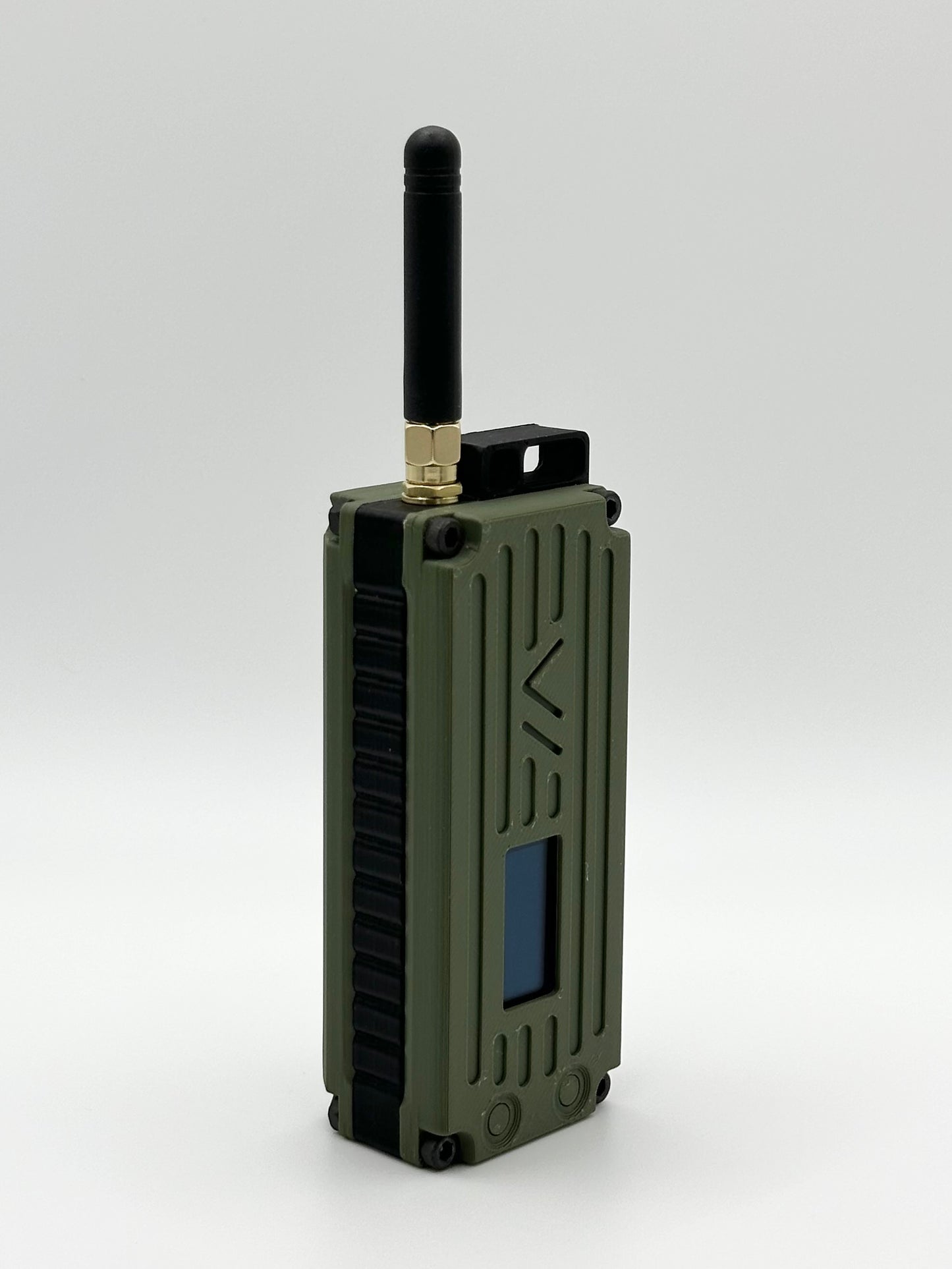

Heltec V3 Case / Enclosure for LoRa Meshtastic Radio

Heltec V3 Case / Enclosure for LoRa Meshtastic Radio

£19.99
£19.99
Sale Sold out
Tax included. Shipping calculated at checkout.
Model
Material

This product is licensed for sale with permission. For all United States orders please visit QuantumShadow3D!

3DChicken is incredibly excited to bring you Gen 2 of the wildly popular TonyG Heltec V3 3D printed Meshtastic case series! Gen 2 features an all NEW sleek & rugged design with an optional Rotary Encoder. Utilising even tougher materials, both higher temperature & UV resistant properties, don’t settle for something that will warp on your dashboard… trust me… we’ve seen it! Give your Heltec V3 a proper look & feel it deserves.

Not compatible with pre-soldered pins on Heltec V3 boards due to case design limitations.

Features

  • Durable & sleek
  • Resistant to warping
  • Multiple colour options
  • GPS mounting options

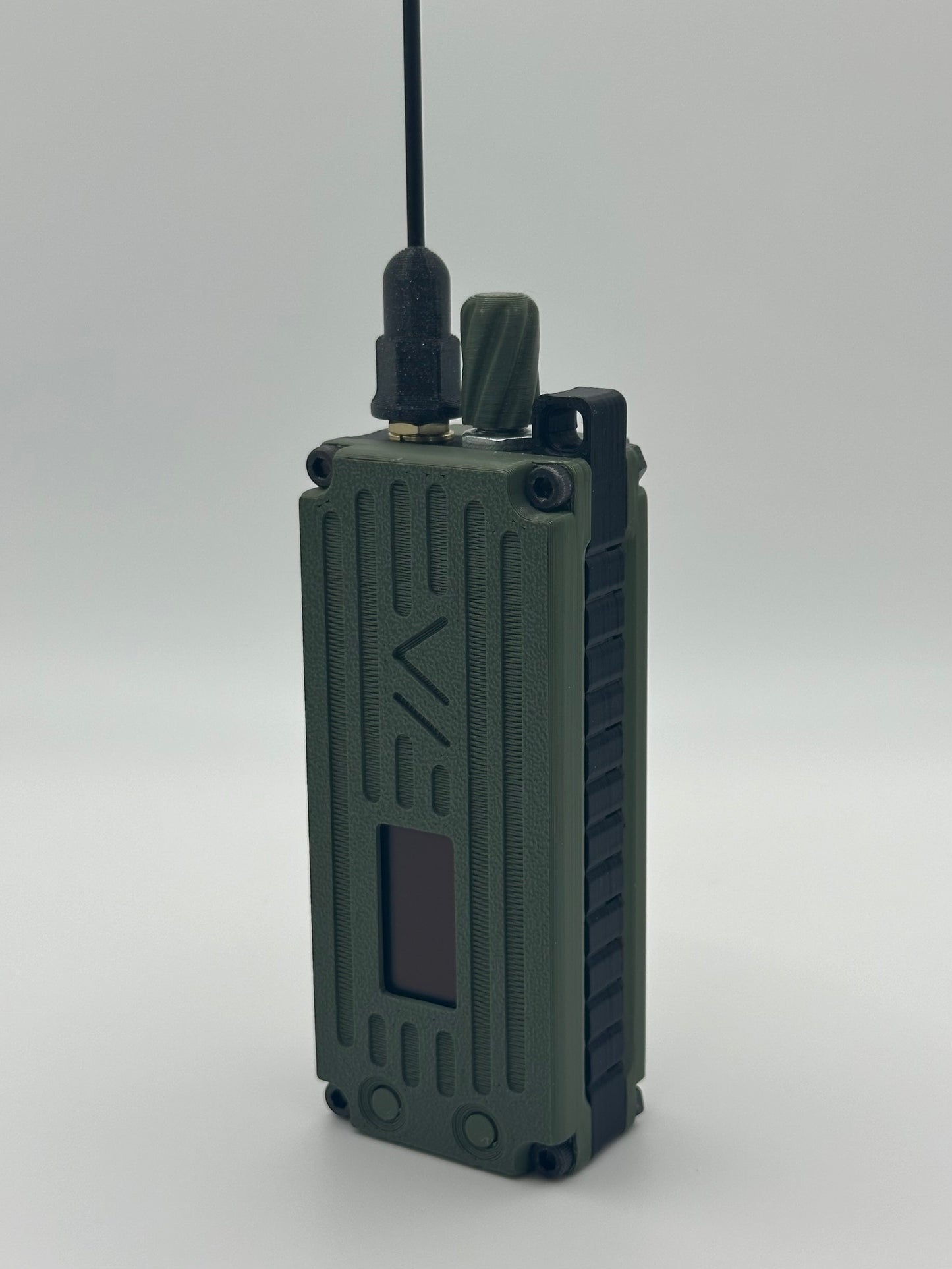

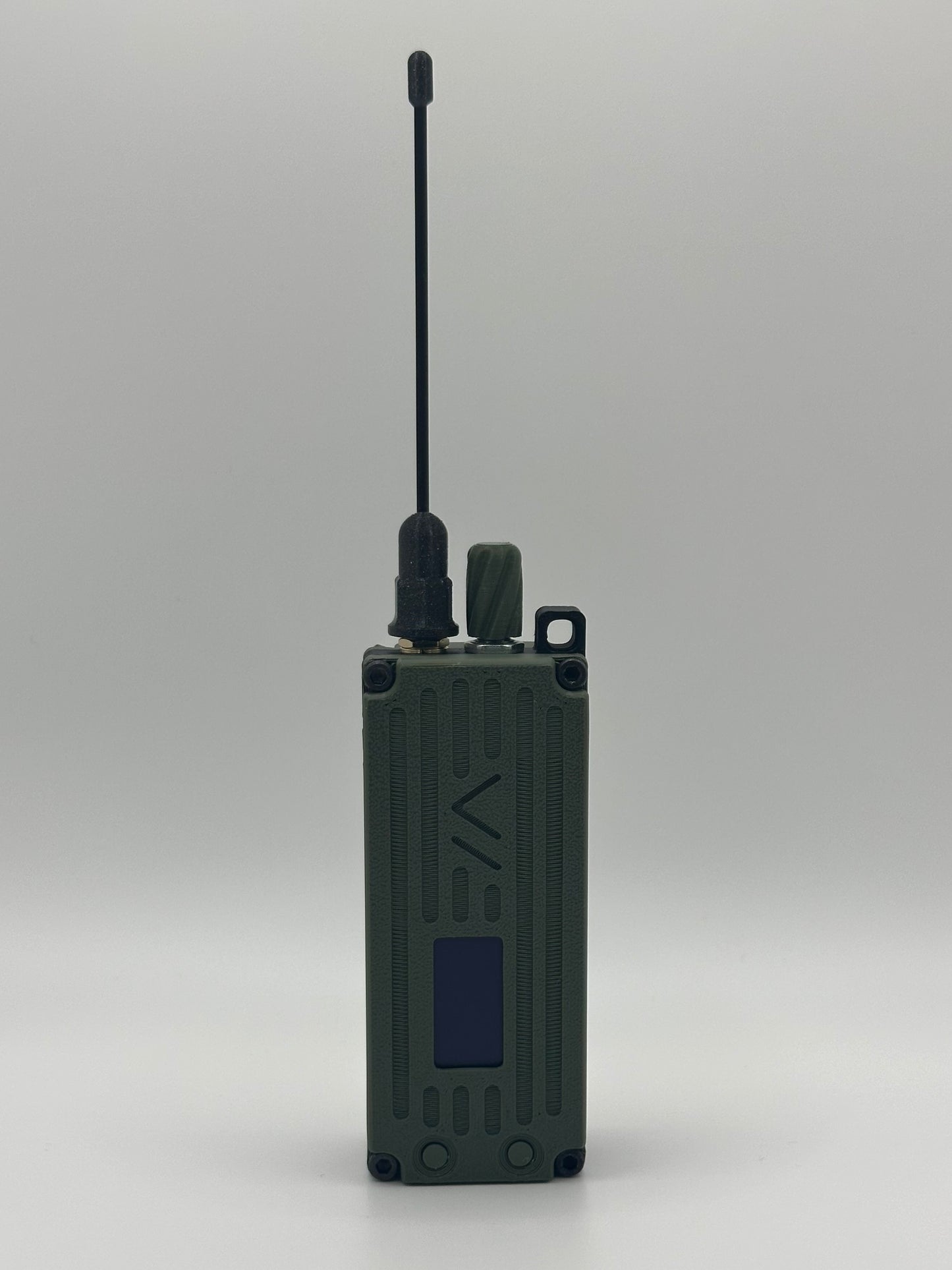

  • Optional Rotary Encoder

What’s included?

  • 3D Printed Compontents
    • 3D Printed Heltec V3 Case Front
    • 3D Printed Heltec V3 Case Frame
    • 3D Printed Heltec V3 Case Back
    • 3D Printed Heltec V3 Case Carrier
    • 3D Printed Heltec V3 Case Buttons
  • 3 Pin Power Switch (Screws included)
  • 4 x M3*20mm Bolts
  • 4 x M3 Nuts
  • Rotary Encoder (Optional)

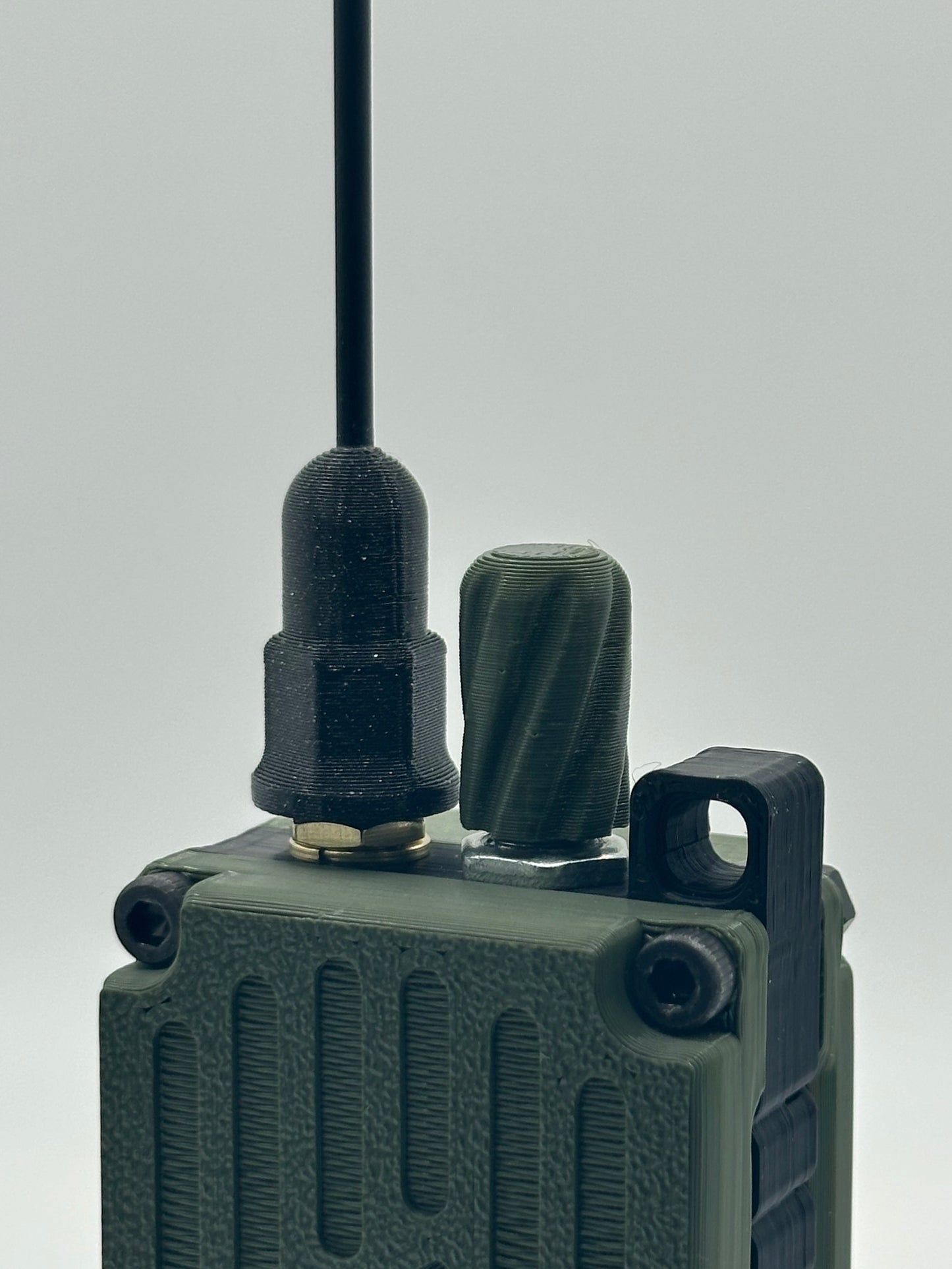

  • 3D Printed Rotary Encoder Control Knob (Optional) Matches case colour choice

Dimensions (Without antenna)

  • Standard - L102.5mm x D30mm x W40mm
  • With Rotary Encoder - L114mm x D30mm x W40mm
  • 18650 battery cover will make the depth 38mm

Battery Recommendation

View full details

3D Printing Process

Our products are made on demand using a manufacturing process called FDM 3D Printing (Fused deposition modeling).

This allows us to print your orders on demand, with minimal lead time in processing.

3D Printing Materials

What are the 3DChicken range of 3D printed goods made from?

Polylactic acid, also known as PLA, is a thermoplastic monomer derived from renewable, organic sources such as corn starch or sugar cane. Using biomass resources makes PLA production different from most plastics, which are produced using fossil fuels through the distillation and polymerization of petroleum.ic sources such as corn starch

Although this material is strong, prolongued exposure to heat/sun may cause some deformation.

Processing Time

Every single product is made on demand, in the UK. This is why we estimate it takes 1-7 days to process your order. (Most orders are processed within 1-2 days)

Quality Control

We only sell and ship products that meet our high standards. If we aren't 100% happy with the quality, why would we expect you to be!

Because of this, you can find some discounted items in the store that weren't quite good enough to be sent to customers!

That being said, due to the nature of 3D printing, all products are subject to unique textures, visible layer lines & minor defects.

Returns

3D Printed items are made on demand, specific to customer requirements. We do not accept returns.

Customer Reviews

Based on 5 reviews
100%
(5)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
R
Robert Chojecki
Heltec V3 Case Meshtastic

Everything is in perfect order. Very aesthetic workmanship. The casing is very well matched to the module Heltec V3. Easy assembly. I recommend :-)Wszystko w najlepszym porządku. Działa prawidłowo. Polecam :-)

A
Andrew Phillips
Great choice for 3d printing

Was fast and was perfect

C
Chris Naylor
Great little case

What a brilliantly engineered case for your Heltec V3 meshtastic board. Room insde for a GPS unit as well as battery.

P
Paul Clark
Well designed sturdy case, and first class service

First I must mention the service. I received the case the very next day after ordering it. It took a little time to work out how all the parts fitted together, but it soon because apparent that a lot of thought had gone into the design.
All the parts required are included in the kit. I'd highly recommend this sturdy case.

User picture
R
Ralph
Got the Heltec v3 Universal to replace an inferior case

My old cases (not from 3D Chicken) melted in the car and conservatory so I posted to East Midlands Meshtastic on FB and Scott Aitcheson Chicken pointed to to one of these.
It is superb quality and construction, I love the pcb support plate that ensure correct alignment and the screws and nuts to hold it together safely. These go into hexagonal shaped recesses making tightening easier. I was only hampered by the lack of internal photos or diagram for assembly. The Push buttons work well but would benefit from being a little longer, say 1.5mm? Also I had to cut the case to fit the antennas wider plug/socket, would be nice if this was taken into account. Here my video review
