Heltec V3 LoRa 32 Meshtastic 868MHz WiFi BLE OLED Radio
Heltec V3 LoRa 32 Meshtastic 868MHz WiFi BLE OLED Radio
Couldn't load pickup availability

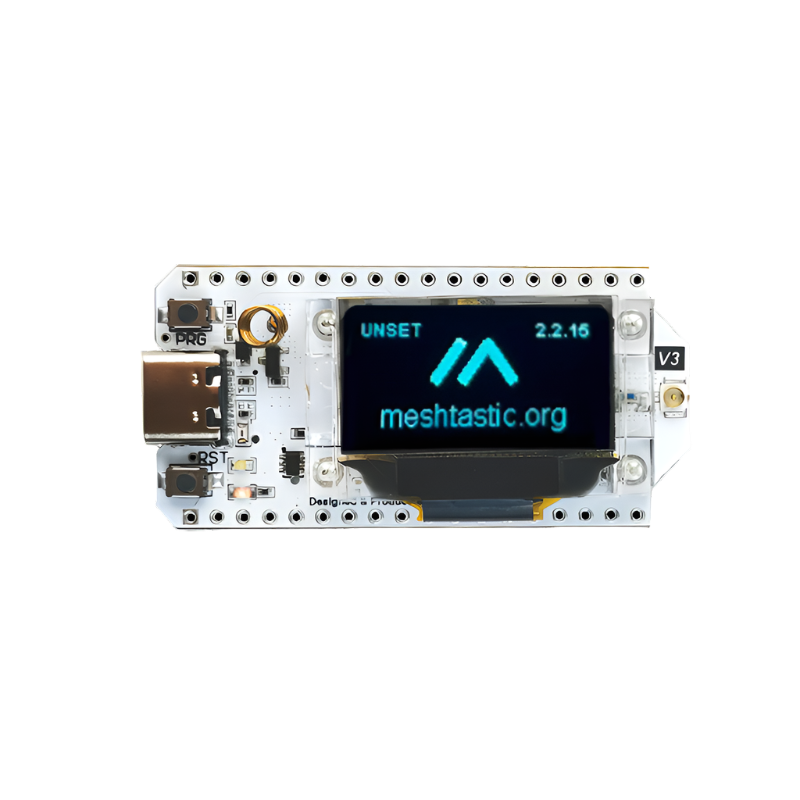

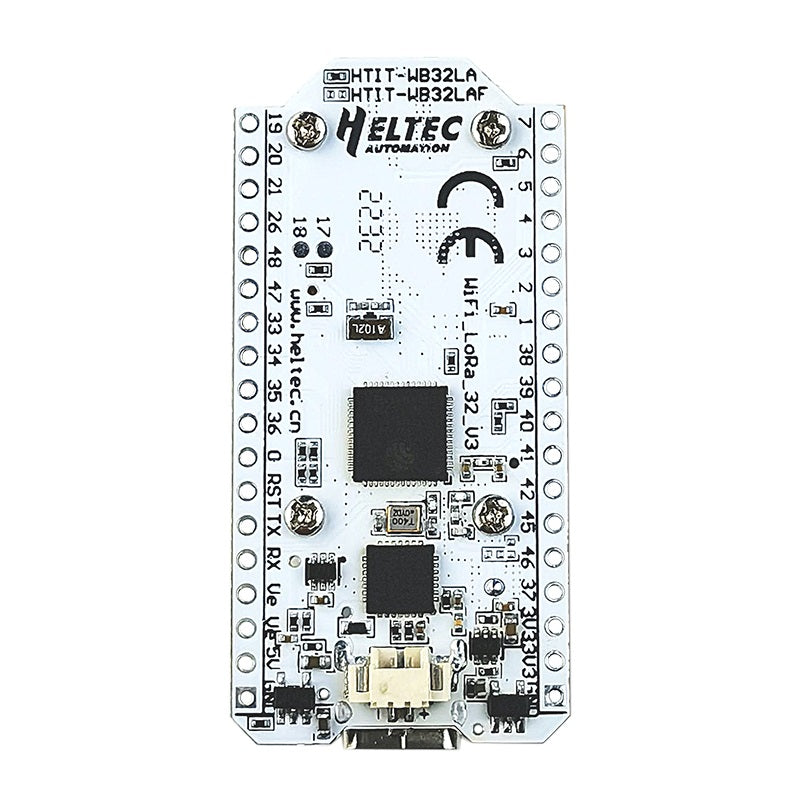

WiFi LoRa 32 is a classic IoT dev-board designed & produced by Heltec Automation. Since its launch in 2017, it has been loved by developers and makers. The newly launched V3 version has the same pin sequence as the V2 version and retains Wi-Fi, BLE, LoRa, OLED display, and other functions.
It is the best option for smart cities, farms, homes, industrial control, house security, wireless meter reading, and IoT developers.
Main Features
- Microprocessor: ESP32-S3FN8 (Xtensa® 32-bit LX7 dual-core processor, five-stage pipeline rack Structure, frequency up to 240 MHz).
- SX1262 LoRa node chip.
- Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding, and other protection measures.
- Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching).
- Onboard 0.96-inch 128*64 dot matrix OLED display can be used to display debugging information, battery power, and other information.
- Integrated WiFi, LoRa, Bluetooth three network connections, onboard Wi-Fi, Bluetooth dedicated 2.4GHz metal spring antenna, reserved IPEX (U.FL) interface for LoRa use.
- Integrated CP2102 USB to serial port chip, convenient for program downloading, and debugging information printing.
- Support the Arduino development environment.
- With good RF circuit design and low-power design.
Share
Collapsible content
3D Printing Process
Our products are made on demand using a manufacturing process called FDM 3D Printing (Fused deposition modeling).
This allows us to print your orders on demand, with minimal lead time in processing.
3D Printing Materials
What are the 3DChicken range of 3D printed goods made from?
Polylactic acid, also known as PLA, is a thermoplastic monomer derived from renewable, organic sources such as corn starch or sugar cane. Using biomass resources makes PLA production different from most plastics, which are produced using fossil fuels through the distillation and polymerization of petroleum.ic sources such as corn starch
Although this material is strong, prolongued exposure to heat/sun may cause some deformation.
Processing Time
Every single product is made on demand, in the UK. This is why we estimate it takes 1-7 days to process your order. (Most orders are processed within 1-2 days)
Quality Control
We only sell and ship products that meet our high standards. If we aren't 100% happy with the quality, why would we expect you to be!
Because of this, you can find some discounted items in the store that weren't quite good enough to be sent to customers!
That being said, due to the nature of 3D printing, all products are subject to unique textures, visible layer lines & minor defects.
Returns
3D Printed items are made on demand, specific to customer requirements. We do not accept returns.
